NOCO

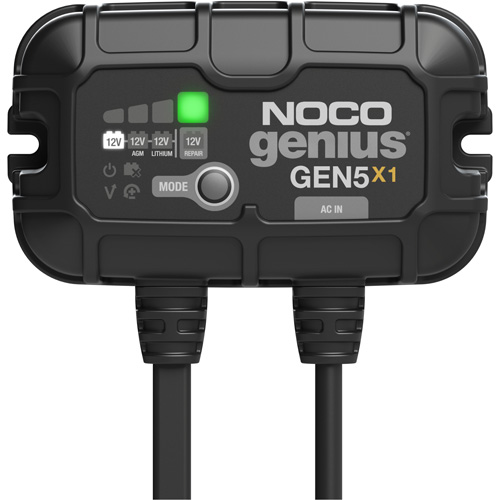

Genius® Gen5X1 1-Bank, 5-Amp On-Board Battery Charger

Model: FLU528

Mfr. No.: GEN5X1

  • Genius® Gen5X1 1-Bank, 5-Amp On-Board Battery Charger Ontario Safety Products

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$119.00 / Each

Includes

  • (1) GEN5X1 On-Board Battery Charger
  • (2) Self-Tapping Screws
  • (1) User Guide & Warranty Information

Line Voltage

120V to 240V AC

Frequency

50Hz to 60Hz

Operating Temperature

-4° to 104°F(-20° to 40°C)

Charging Current

5 Amps DC x 1 Bank

Charging Voltages

12 Volts

Charging Capacity Range

Up to 120 Amp-Hours

Power Consumption

72 Watts x 1 Bank (72 Watts Max)

Dimensions

2.99" H x 5.09" W x 1.9" D

Country Of Origin

Vietnam

  • A one-bank onboard battery charger rated at 5-amps for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries
  • Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries

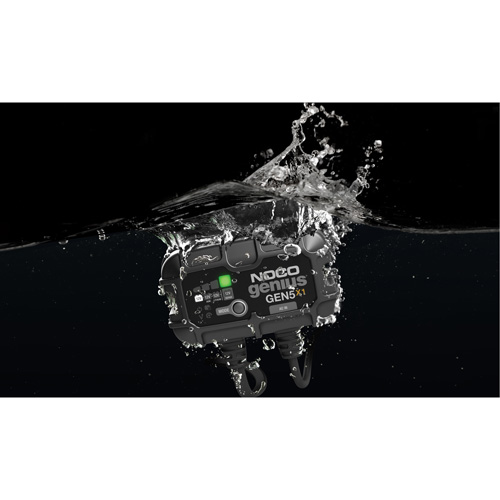

  • Fully-sealed, 100% waterproof and designed to withstand hours underwater
  • The GEN5X1 is an on-board charger built for extreme conditions with an ingress protection rating of IP68
  • The GEN5X1 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging
  • Its onboard microcomputer precisely controls the charging to minimize power loss to create an incredibly compact form factor
  • Effortlessly charge 12-volt lead-acid and lithium-ion batteries of multiple chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, and more)
  • A simplified mounting system allows for quick and easy installations in any direction - even up-side-down - with an integrated anti-vibration backing to isolate shock, vibration, and noise
  • The all-new start-voltage sensor allows the Genius GEN charger to detect and charge dead batteries as low as 1-volt
  • For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts
  • The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery
  • Avoids under-charging in cold weather down to -4F and avoids over-charging in hot weather up to 104F
  • Automatically detects sulfation/acid stratification
