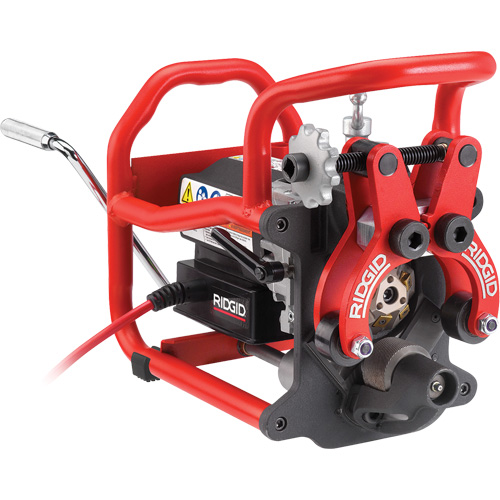

Transportable Pipe Beveller

Model: UAI569

Manufacturer Model No.: 49298


  • Capacity: 4" Pipe & Larger Flat Plat
  • Pipe Wall/Plate Thickness: 4.8 mm - 12.7 mm
  • Dimensions (L x W x H): 15.8" x 11..5" x 13.3"
  • No Load RPM: 950
  • Frame Material: Steel
  • Land Width: 0" - 3/16" in 1/32" Increments
  • Voltage: 115 V
  • Compact design quickly mounts to pipes with a 4" and up diameter, with a maximum wall thickness of 1/2", and creates consistent bevels in a single pass
  • Set up and bevel 10" diameter schedule 40 pipe in 45 seconds
  • Pipe is cool to touch immediately following beveling
  • Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes
  • Adjustable land width from 0" to 3/16" to fit welders’ requirements
  • Produces a machined finish due to 6 replaceable cutter inserts working simultaneously
  • Clamp system firmly secures tool to the pipe
  • Speed monitoring feature with LED indicators for optimal cutter performance
  • Spark free operation
  • Cutter head rated for most steel and stainless steel (optimized for standard A53 mild steel pipe)
  • Includes: 37.5° Cutter head with inserts
